Longi Solar Panel 580W | N-Type Technology

Longi Solar Panel 580W | N-Type Technology

Model NO:LR5-72HGD 560~590M
Weight:31.8 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2278*1134*30mm
Trademark:Longi solar
Origin:China

৳ 14,500.00

Category: Brand: , , ,

Share:

Guaranteed Safe Checkout

Description

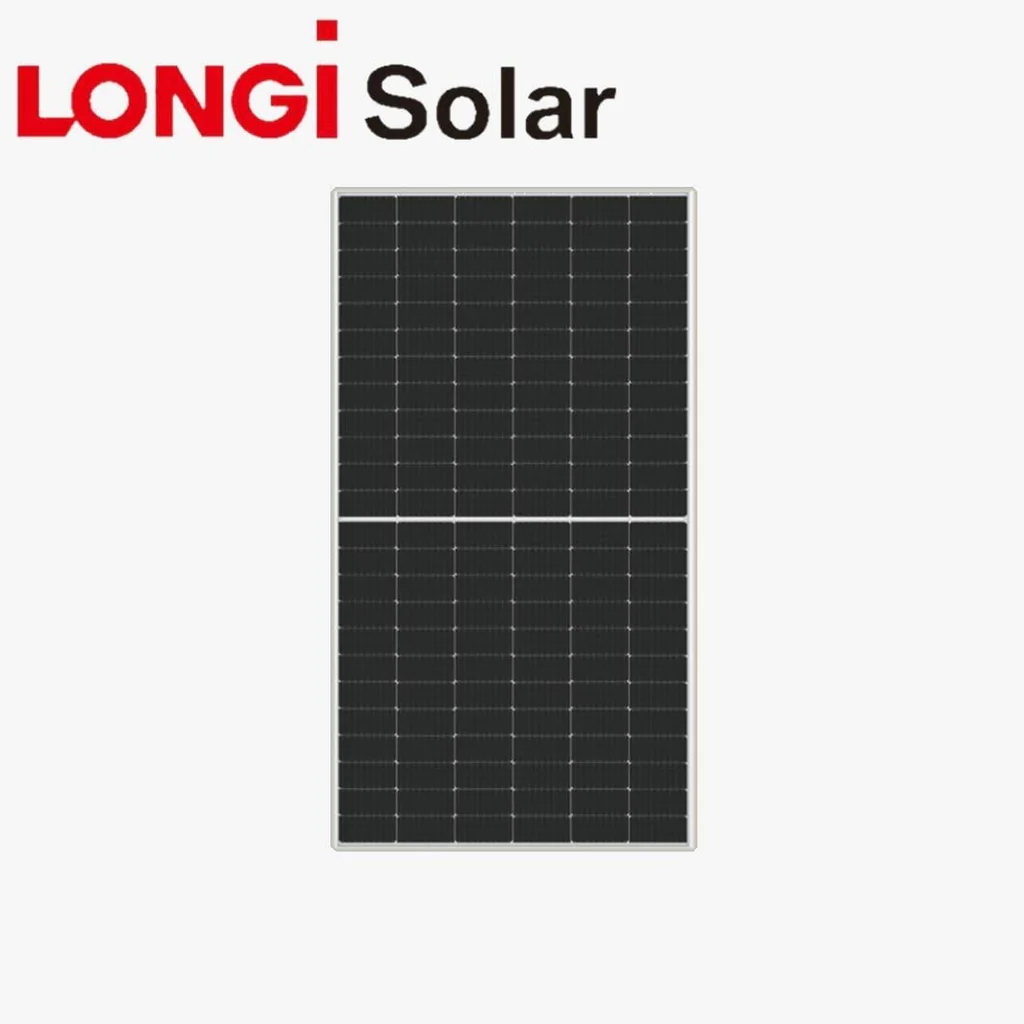

Longi Solar Panel 580W | N-Type Technology

The Longi 580 W N-Type Solar Panel is a high-performance, premium photovoltaic module designed for efficient energy generation in residential, commercial, and industrial solar power systems. It uses advanced N-Type monocrystalline technology to maximize sunlight conversion and long-term power output, delivering reliable and clean solar energy.

This solar panel features 144 half-cut monocrystalline cells optimized for higher efficiency (around 22.5 %), better low-light performance, and reduced power loss over time compared with older P-type panels.

The panel is built with durable materials including 3.2 mm coated tempered glass and an anodized aluminum alloy frame for strength and structural integrity. It incorporates an IP68-rated junction box that protects against water and dust, making it suitable for outdoor installation and harsh weather conditions.

With a 580 W peak power output, this module provides high energy yield per panel, which helps reduce the number of panels required for large systems and optimizes rooftop or ground-mount installations.

MECHANICAL DATA
Cell Orientation 144(6*24)
Junction Box IP68,three diodes
Output Cable 4mm²,+400,-200mm/±1400mm
length can be customized
Glass Dual glass, 2.0+2.0mm heat strengthened glass
Frame Anodized aluminum alloy frame
Weight 31.8kg
Dimension 2278*1134*30mm
ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax) 560w 565w 570w 575w 580w 585w 590w
Power Tolerance 0~±3%
Opt. Operating Voltage (Vmp) 50.99 51.09 51.19 51.3 51.41 51.52 51.63
Opt. Operating Current (Imp) 13.89 13.97 14.05 14.14 14.22 14.3 14.38
Open Circuit Voltage (Voc) 42.82 42.91 43 43.11 43.22 43.33 43.44
Short Circuit Current (Isc) 13.08 13.17 13.26 13.34 13.42 13.51 13.59
Module Efficiency 21.70% 21.90% 22.10% 22.30% 22.50% 22.60% 22.80%
