Brand: LUXWATT
Model: UX-128200FP
Battery Type: LiFePO₄ Lithium Iron Phosphate
Nominal Voltage: 12.8V
Capacity: 200Ah
Battery Energy: 2560WH
Charge Current: 50A
Discharge Current: 100A
Discharge Power: 2560WH
Cycle Life: 6000+ cycles @80% DOD
Efficiency: >95%
Dimension: 26*171*215mm522*240*218mm
Weight: 27kg
Operating Temperature: -20°C to 60°C
Warranty: 6 বছর
1. Convenient communication. Bluetooth function can be added to obtain battery data in the cloud.
2. Visual design. LCD display can be added to check the battery.
3. Waterproof & dustproof. IP65 waterproof and dustproof performance.
4. Flexible & convenient. Multi scenario use（RV, cart, UPS,etc.）, plug and play, can be used in series-parallel.
Original price was: ৳ 45,500.00.৳ 39,500.00Current price is: ৳ 39,500.00.

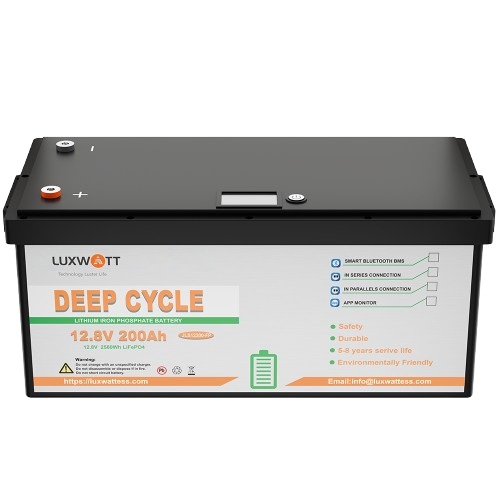

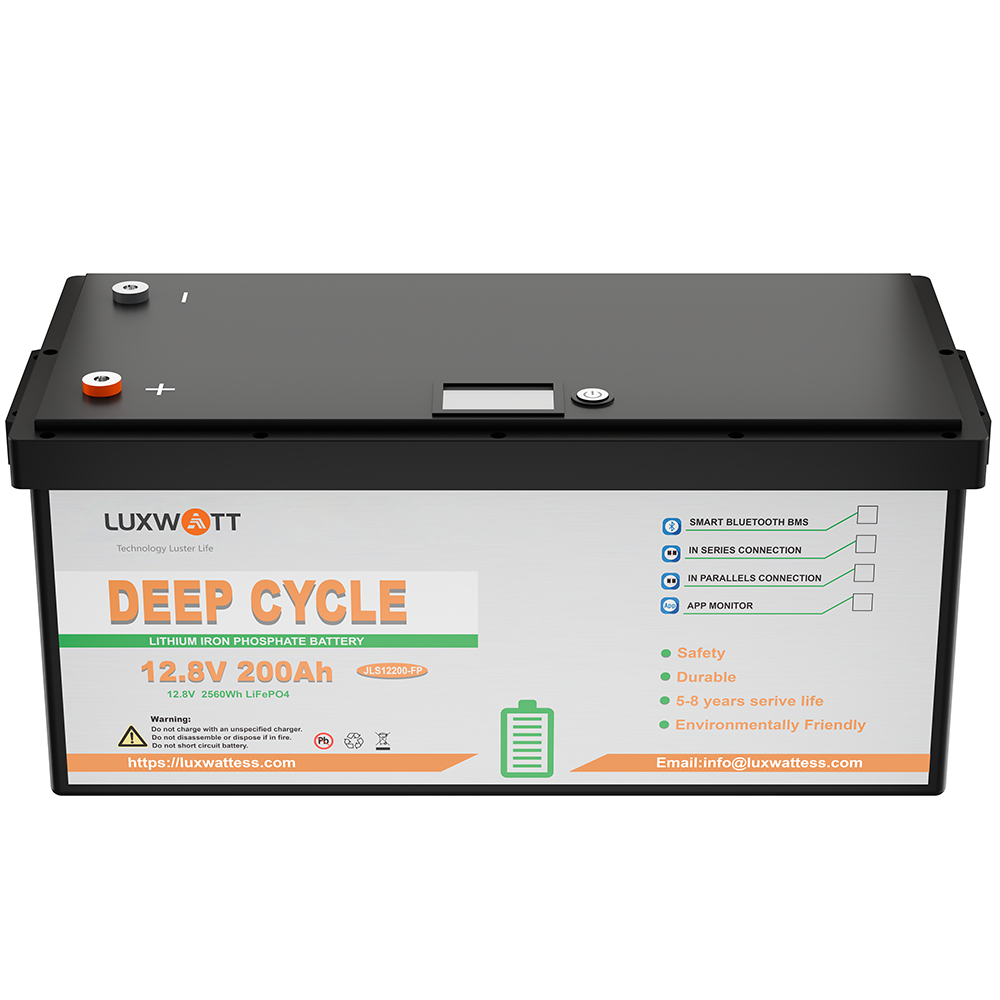

The LUXWATT 12.8V 200Ah Lithium Battery is a high-capacity, high-performance LiFePO4 (Lithium Iron Phosphate) battery designed for solar energy storage, hybrid inverters, UPS/IPS systems, telecom backup, and other off-grid applications. With a total energy capacity of 2.56kWh, this battery provides reliable, long-lasting power and superior efficiency compared to traditional lead-acid batteries.
Featuring premium LiFePO4 prismatic cells, the LUXWATT 12.8V 200Ah battery offers deep cycle capability, fast charging, and high discharge efficiency, making it ideal for both residential and commercial solar systems. The built-in Smart Battery Management System (BMS) ensures complete protection against overcharge, over-discharge, short circuits, overcurrent, and temperature extremes, keeping your battery safe and maintaining long-term performance.
Its robust and compact design allows for easy installation, both indoors and outdoors, with optional wall-mounting or floor placement. The battery supports series and parallel connections, allowing users to scale their energy storage system to 24V, 48V, or higher capacities for larger solar or backup setups. Some models include LCD display or Bluetooth monitoring, providing real-time battery status and performance insights.
With a cycle life of over 3000–5000 cycles, depending on depth of discharge, the LUXWATT 12.8V 200AH lithium battery ensures long-term reliability and cost-effective energy storage. It is suitable for homes, offices, shops, commercial solar systems, and critical backup applications where uninterrupted electricity is essential.
If you are looking for a durable, maintenance-free, and high-capacity lithium battery for solar, inverter, or UPS backup, the LUXWATT 12.8V 200AH lithium battery is an excellent choice for stable, efficient, and long-lasting power storage.
| Parameters | ||||
| Product Model | LUX-12100FP | LUX-12200FP | ||
| Nominal Voltage | 12.8V | 12.8V | ||
| Nominal Capacity @25°C | 100AH | 200AH | ||
| Nominal Energy @25°C | 1280WH | 2560WH | ||
| Battery Cell Type | Prismatic 100Ah | Prismatic 100Ah | ||
| Configuration (*S*P) | 4S1P | 4S2P | ||
| Max.Continous Charge Current @25C | 100A | 100A | ||
| Max, Continous Discharge Current @25C | 100A | 100A | ||
| DC Resistance | ≤50mΩ | |||
| Full Charged Voltage | 14.6V | |||
| Discharge Cut-off Voltage | 10V | |||
| Operate Temperature Range | Charge: 0’C~55°C; | Discharge: -20°℃~60’C; | ||
| Dimension (mm) | 326*171*215mm | 522*240*218mm | ||
| Weight (kG) | 12.5KG | 25KG | ||
| Terminal Type | Screw terminal | |||
| Cover Sealing type | Screw/gel sealing optional | |||
| Water proof | IP65 | |||
| Cycle life | 100% DOD Cycles @ 25C, 1C/1C: >2000 times 80% DOD Cycles @ 25’C, 1C/1C: >3000 times 50% DOD Cycles @ 25’C, 1C/1C:>5000 times |
|||
| LCD Screen Display | Optional (Show voltage V, Power %) | |||
| Bluetooth | Optional (Bluetooth with mobile APP) | |||
| Series and Parallels Function | Available to make in series and parallels to get 48V | |||
| Heating Function | Optional(Heating function for application in cold area) | |||
