Original price was: ৳ 90,999.00.৳ 77,999.00Current price is: ৳ 77,999.00.

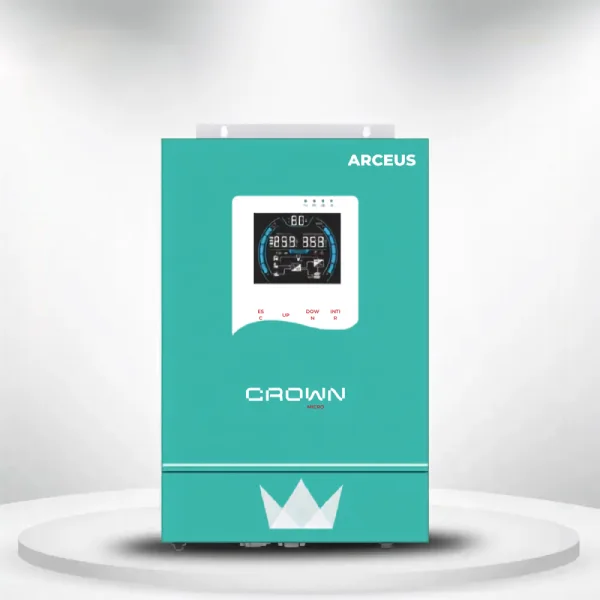

The CROWN Micro ARCEUS 6.5KW Hybrid Solar Inverter (PV-7800) is a premium pure sine wave hybrid solar inverter engineered for residential, commercial, and industrial solar applications. Designed with dual MPPT technology, built-in Battery Management System (BMS), and Wi-Fi monitoring, it maximizes solar energy production while providing reliable backup power.
Supporting 48V lithium and lead-acid batteries, battery-independent operation, smart load management, and optional parallel operation of up to four units, the ARCEUS 6.5KW is an ideal solution for modern hybrid and off-grid solar systems.
| Specification | Details |
|---|---|
| Model | ARCEUS-6.5KW |
| Product Code | PV-7800 |
| Rated Power | 6500VA / 6500W |
| Rated Input Voltage | 208 / 220 / 230 / 240VAC (L + N + PE) |
| Input Voltage Range | 90–280VAC (Appliance Mode), 170–264VAC (UPS Mode) |
| Frequency | 50/60Hz (Auto Adaptive) |
| Rated Output Voltage | 208 / 220 / 230 / 240VAC ±5% |
| Output Waveform | Pure Sine Wave |
| Power Factor | 1.0 |
| Transfer Time | 10ms |
| Peak Efficiency | Up to 94% |
| Parallel Operation | Up to 4 Units (Optional) |
| Solar Charger Type | Dual MPPT |
| Maximum PV Input Power | 7800W |
| Maximum PV Input Current | 27A |
| MPPT Operating Voltage | 90–550VDC |
| Maximum PV Open Circuit Voltage | 550VDC |
| Maximum PV Charging Current | 120A |
| Maximum AC Charging Current | 100A |
| Maximum Charging Current | 100A |
| Battery Voltage | 48V DC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 60VDC |
| Battery Type | Lithium / Lead-acid |
| Display | 5.2-inch Color Touch LCD |
| Communication | RS485, CAN, USB, RS232, Dry Contact |
| Monitoring | Built-in Wi-Fi |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 20%–95% (Non-condensing) |
| Net Weight | 9.2kg |
| Dimensions | 375 × 570 × 200 mm |
The CROWN Micro ARCEUS 6.5KW Hybrid Solar Inverter is ideal for:
CROWN Micro ARCEUS 6.5KW Hybrid Solar Inverter (PV-7800) | Dual MPPT Pure Sine Wave
Buy the CROWN Micro ARCEUS 6.5KW Hybrid Solar Inverter (PV-7800) with dual MPPT, 7800W PV input, 120A charging, built-in Wi-Fi, BMS, 48V battery support, and 94% efficiency.
CROWN Micro ARCEUS 6.5KW, ARCEUS 6.5KW Hybrid Inverter, PV-7800 Inverter, 6.5KW Solar Inverter, Hybrid Solar Inverter Bangladesh, Dual MPPT Inverter, Pure Sine Wave Inverter, 48V Hybrid Inverter, Crown Solar Inverter, WiFi Solar Inverter, Lithium Battery Inverter.
