• High energy density, high capacity, lithium power battery
• Support using under wide temperature range, 6000+ cycle life
• Built-in BMS
• Support connected in parallel mode for expansion
• Long warranty period
• Floor standing or wall mount for simple installation
• Constructed with SPCC high-quality cold-rolled steel for robust support
• 4.3-inch touch screen for easy operation
• Built-in aerosol fire extinguisher

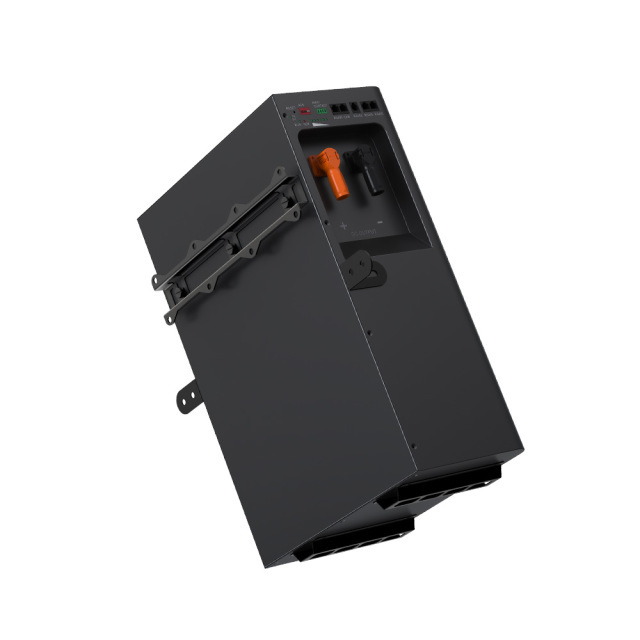

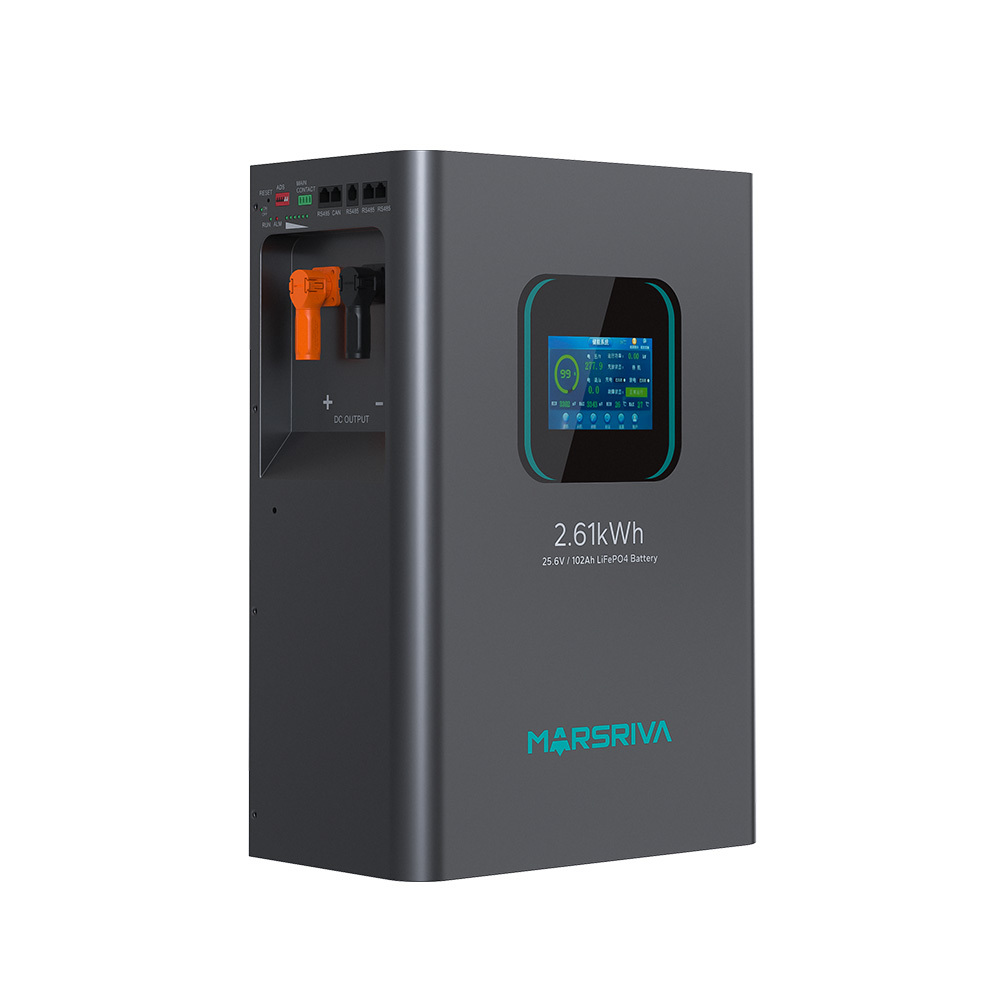

The MARSARIVA MR-LFP24-100-WMD 25.6V 100Ah LiFePO4 Lithium Battery is a high-performance energy storage solution designed for residential, commercial, and solar power applications. Built with premium Grade-A LiFePO4 cells, this battery delivers outstanding safety, long service life, and reliable performance for off-grid solar systems, hybrid inverters, UPS systems, and energy storage systems (ESS).
Equipped with an advanced Battery Management System (BMS), the battery provides comprehensive protection against overcharging, over-discharging, overcurrent, short circuits, and overheating. Its intelligent design ensures maximum efficiency, extended battery life, and stable operation under demanding conditions.

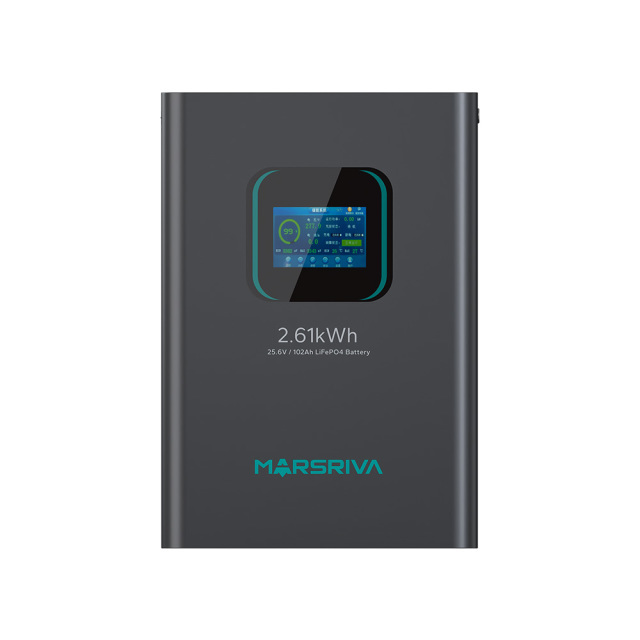

The battery features a 4.3-inch touchscreen LCD display for real-time monitoring of battery status and supports CAN and RS485 communication, making it compatible with a wide range of leading inverter brands. It also supports parallel connection of up to 15 battery units, allowing users to expand their energy storage capacity as power requirements grow.
With an official capacity of 25.6V 102Ah (approximately 2.61kWh), this model is commonly marketed as a 25.6V 100Ah lithium battery. It offers 6,000+ charge and discharge cycles, providing a significantly longer lifespan than traditional lead-acid batteries while requiring minimal maintenance.
| Model | MR-LFP24-100-WMD | |||
| Battery Type | LiFePO4 Battery (Grade A) | |||
| Nominal Voltage | 25.6V | |||
| Capacity | 102Ah | |||
| Storage Capacity | 2.61kWh | |||
| Battery Internal Resistance | ≤13.9mΩ | |||
| Cycle Life | ≥6000 @25°C, to 70% EOL | |||
| Design Life | ≥10 years | |||
| Max. Charging Current | 105A | |||
| Max. Discharging Current | 120A | |||
| Peak Charging Current | 110A / 2s | |||
| Peak Discharging Current | 125A / 2s | |||
| Communication | RS485, CAN | |||
| Number of Parallel Connections | Up to 15 units | |||
| Charging Temperature | 0℃ to 55℃ | |||
| Discharging Temperature | -20℃ to 55℃ | |||
| Storage Temperature | -30℃ to 35℃ | |||
| Humidity | 5% – 95% | |||
| LCD | 4.3-inch touch screen | |||
| Dimension (L*W*H) | 368 × 198 × 530mm | |||
| Weight | 26.4kg | |||
