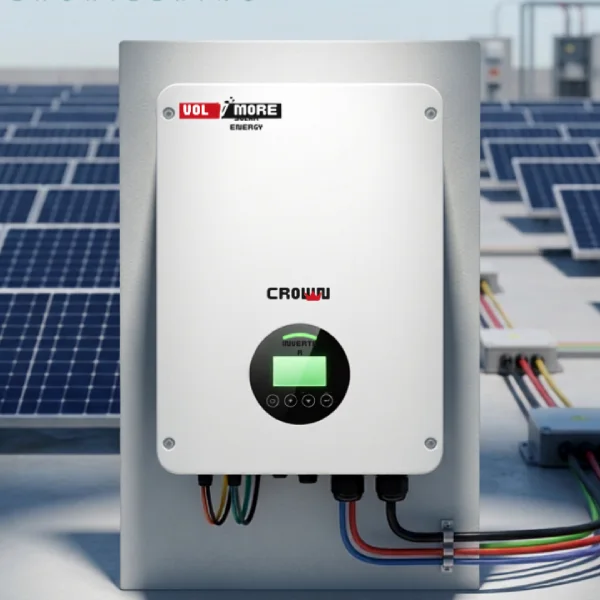

Buy Crown Micro VOLTMORE VMGI-2KW-SP 2KW Single Phase On-Grid Solar Inverter with 97.5% maximum efficiency, 600V DC input, IP66 protection and Wi-Fi/4G monitoring support.
Original price was: ৳ 47,999.00.৳ 40,999.00Current price is: ৳ 40,999.00.
Crown Micro VOLTMORE VMGI-2KW-SP is a 2KW single-phase on-grid solar inverter designed for residential and small solar PV systems. It supports a maximum DC voltage of 600V, an MPPT voltage range of 80V–560V, and achieves up to 97.5% maximum efficiency. The inverter also features IP66 protection, natural convection cooling, anti-islanding protection, Type III DC/AC surge protection and optional Wi-Fi/4G connectivity.
Importantly for Bangladesh, the VMGI-2KW-SP is listed by SREDA as an approved 2kW single-phase solar inverter for the Net Metering Program.
| Specification | Details |
|---|---|
| Brand | Crown Micro |
| Series | VOLTMORE |
| Model | VMGI-2KW-SP |
| Inverter Type | On-Grid / Grid-Tie |
| Phase | Single Phase |
| Rated Output Power | 2000W / 2000VA |
| Maximum DC Voltage | 600V DC |
| Start Voltage | 80V |
| MPPT Voltage Range | 80–560V |
| Number of MPPT | 1 |
| Strings per MPPT | 1 |
| Max. Input Current | 13A |
| Max. Short-Circuit Current | 15.6A |
| Nominal AC Voltage | 230V L-N |
| Maximum AC Apparent Power | 2200VA |
| Maximum Output Current | 9.6A |
| Grid Frequency | 50/60Hz ±5Hz |
| Maximum Efficiency | 97.5% |
| Euro Efficiency | 97% |
| Power Factor | 0.8 leading – 0.8 lagging |
| THDi | <3% |
| Protection Rating | IP66 |
| Cooling | Natural Convection |
| Communication | RS-485 / Wi-Fi / 4G |
| Display | LCD / Bluetooth + App |
| Topology | Transformerless |
| Weight | Approx. 8 kg |
| Operating Temperature | -25°C to +60°C |
| Maximum Altitude | 4000m |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| Anti-Islanding | Yes |
| DC Reverse Polarity Protection | Yes |
| AC Short Circuit Protection | Yes |
The Crown catalogue confirms the core VMGI-2KW-SP specifications; some marketplace listings additionally provide the detailed protection and physical specifications.
Crown Micro VOLTMORE VMGI-2KW-SP 2KW Single Phase On-Grid Solar Inverter is an efficient grid-tied solar inverter designed for residential and small commercial solar power systems. With a 2000W rated AC output, this single-phase solar inverter converts electricity generated by solar panels into usable AC power for grid-connected applications.
The Crown Micro VMGI-2KW-SP supports a maximum DC voltage of 600V and an MPPT operating range of 80V to 560V, helping the solar system efficiently utilize power generated from photovoltaic panels. It offers up to 97.5% maximum efficiency, making it a practical choice for customers looking for a reliable 2KW on-grid solar inverter in Bangladesh.
For durability, the inverter comes with IP66 protection and natural convection cooling. It also includes important safety features such as anti-islanding protection, overcurrent protection, DC reverse-polarity protection, AC short-circuit protection and Type III DC/AC surge protection.
The inverter supports RS-485, Wi-Fi and 4G communication, allowing solar-system monitoring through compatible monitoring solutions. Its transformerless design and compact construction make it suitable for various residential and small-scale solar installations.
For customers in Bangladesh, another major advantage is that Crown VMGI-2KW-SP is included in SREDA’s approved list of single-phase solar inverters for the Net Metering Program. SREDA lists the model with a capacity of 2kW and the required BDS IEC standards.
