Buy CROWN Micro VOLTMORE VMGI-5KW 5KW three-phase on-grid solar inverter with dual MPPT, 98.4% efficiency, 1100V PV input, IP66 protection and Wi-Fi monitoring.
Original price was: ৳ 71,999.00.৳ 61,999.00Current price is: ৳ 61,999.00.

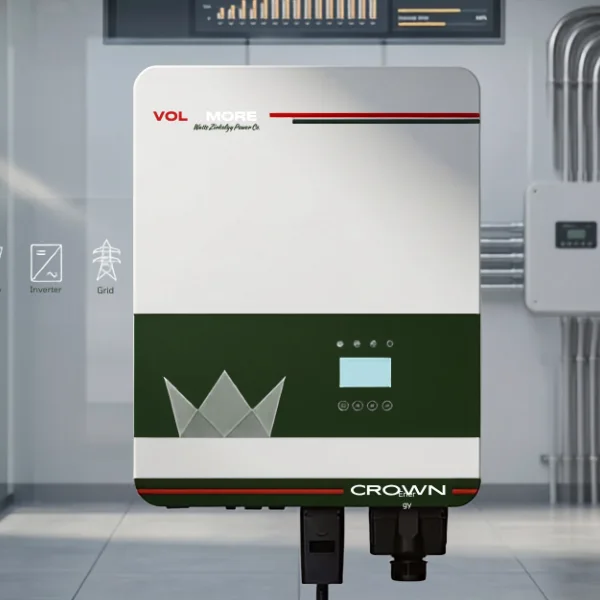

The CROWN Micro VOLTMORE VMGI-5KW is a high-efficiency 5KW three-phase on-grid solar inverter designed for residential, commercial, and small industrial solar power systems. It uses MPPT-based technology to efficiently convert solar energy into grid-compatible electricity.
With a 1100V maximum DC input voltage, 140V–1000V MPPT operating range, and up to 98.4% maximum efficiency, the VMGI-5KW is designed to provide reliable solar power conversion. Its IP66 protection, natural cooling, built-in DC switch, anti-islanding protection, and optional Wi-Fi/4G monitoring make it suitable for a wide range of grid-connected solar installations.
| Specification | Details |
|---|---|
| Brand | CROWN Micro |
| Series | VOLTMORE |
| Model | VMGI-5KW |
| Inverter Type | Three-Phase On-Grid |
| Rated Power | 5000VA / 5000W |
| Maximum AC Output Power | 5500VA |
| Maximum DC Voltage | 1100V |
| Nominal DC Voltage | 650V |
| Start-Up Voltage | 250V |
| MPPT Voltage Range | 140–1000V DC |
| Number of MPPT | 2 |
| Max. Input Current per MPPT | 15A |
| Max. Short-Circuit Current per MPPT | 20A |
| Nominal AC Voltage | 400/230V, 3P + N + PE |
| Grid Frequency | 50/60Hz ±5Hz |
| Maximum Output Current | 8.0A |
| Power Factor | 0.8 Leading – 0.8 Lagging |
| THDI | <3% |
| Maximum Efficiency | 98.4% |
| Euro Efficiency | 97.5% |
| Cooling | Natural Cooling |
| Protection Rating | IP66 |
| Topology | Transformerless |
| Communication | RS485 / Wi-Fi / 4G |
| Display | LCD with Touch Pad |
| Operating Temperature | -25°C to +60°C |
| Maximum Operating Altitude | 4000m |
| Maximum Humidity | 0–100%, non-condensing |
The official CROWN catalogue lists these specifications for the VMGI-5KW within the VOLTMORE 3KW–12KW series.
The CROWN Micro VOLTMORE VMGI-5KW includes multiple protection functions for safe grid-connected solar operation:
The catalogue specifies Type II DC surge protection and Type III AC surge protection, with Type II AC protection available as an option.
The CROWN Micro VOLTMORE VMGI-5KW is suitable for:
With maximum efficiency of 98.4%, the VMGI-5KW is designed to convert solar energy efficiently and reduce conversion losses.
The two MPPT trackers help optimize solar energy harvesting from different PV strings, providing greater flexibility when designing a solar panel system.
The inverter supports a 140V–1000V MPPT operating range and 1100V maximum DC voltage, allowing flexible PV array configuration.
The IP66-rated enclosure helps protect the inverter against dust and water, making it suitable for demanding installation environments.
The VMGI-5KW supports RS485 communication, with optional Wi-Fi and 4G connectivity for remote monitoring of solar system performance.
