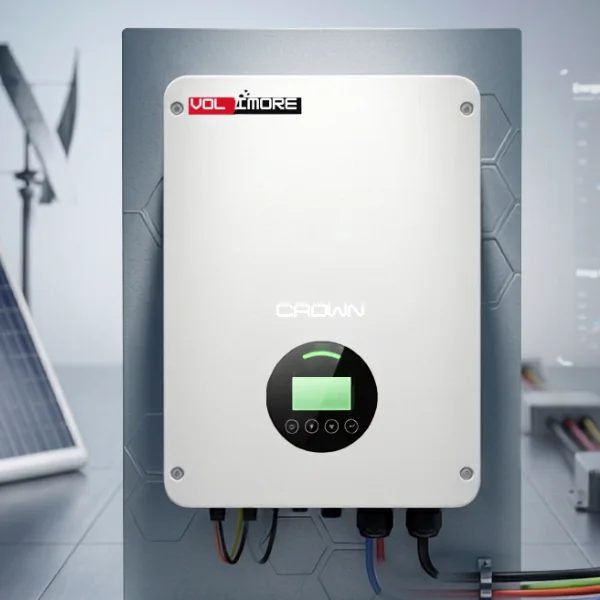

Buy Crown Micro VOLTMORE VMGI-5KW-SP 5KW Single Phase On-Grid Solar Inverter with up to 98.3% efficiency, 600V PV input, IP65 protection and Wi-Fi/4G monitoring support.
Original price was: ৳ 76,999.00.৳ 66,999.00Current price is: ৳ 66,999.00.
Crown Micro VOLTMORE VMGI-5KW-SP is a 5KW single-phase on-grid solar inverter designed for residential and commercial solar PV systems. It provides 5000W rated AC output, supports up to 600V maximum PV voltage, and has an 80V–560V MPPT voltage range. The inverter features IP65 protection, MPPT technology, Type III DC/AC surge protection, anti-islanding protection and optional Wi-Fi/4G monitoring.
For Bangladesh, the VMGI-5KW-SP is approved by SREDA for the Net Metering Program with a listed capacity of 5 kW and compliance with the relevant BDS IEC standards.
| Specification | Details |
|---|---|
| Brand | Crown Micro |
| Series | VOLTMORE |
| Model | VMGI-5KW-SP |
| Inverter Type | On-Grid / Grid-Tie |
| Phase | Single Phase |
| Rated Output Power | 5000W / 5000VA |
| Maximum DC Voltage | 600V DC |
| Start Voltage | 120V |
| MPPT Voltage Range | 80–560V |
| Number of MPPT | 2* |
| Maximum Input Current | 15A per MPPT |
| Maximum Short-Circuit Current | 18A per MPPT |
| Maximum AC Apparent Power | 5500VA |
| Nominal AC Voltage | 230V L-N |
| Maximum Output Current | 24A |
| Grid Frequency | 50/60Hz ±5Hz |
| Maximum Efficiency | Up to 98.3% |
| Power Factor | 0.8 leading – 0.8 lagging |
| THDi | <3% |
| Protection Rating | IP65 |
| Cooling | Natural Convection |
| Communication | RS-485 / Wi-Fi / 4G |
| Display | LCD / Bluetooth + App |
| Topology | Transformerless |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| Anti-Islanding | Yes |
| DC Reverse Polarity Protection | Yes |
| AC Short Circuit Protection | Yes |
*The Crown catalogue’s extracted table does not cleanly display every per-model MPPT field for the 5KW version, so I recommend verifying the exact MPPT count against the physical datasheet supplied with your stock before publishing that particular field. The catalogue does clearly confirm the 80–560V MPPT range, 15A input current, 18A short-circuit current and 5000W/5500VA output figures.
Crown Micro VOLTMORE VMGI-5KW-SP 5KW Single Phase On-Grid Solar Inverter is a high-efficiency grid-tied solar inverter designed for residential and commercial solar PV systems. With a 5000W rated output, this single-phase on-grid inverter converts DC electricity generated by solar panels into AC electricity that can be used by connected loads and synchronized with the utility grid.
The Crown Micro VMGI-5KW-SP supports a maximum PV voltage of 600V DC and an MPPT operating range of 80V to 560V, helping the solar PV system efficiently utilize available solar energy. The VOLTMORE series offers efficiency of up to 98.3%, making it a suitable option for customers looking for a reliable 5KW on-grid solar inverter in Bangladesh.
The inverter features IP65 protection and natural convection cooling. Built-in safety functions include anti-islanding protection, DC reverse-polarity protection, AC short-circuit protection and Type III DC and AC surge protection.
For system monitoring and communication, the VOLTMORE series supports RS-485 communication with optional Wi-Fi and 4G connectivity, allowing users to monitor solar system performance through compatible monitoring solutions.
For customers in Bangladesh, an important advantage is that the Crown Micro VMGI-5KW-SP is included in SREDA’s approved list of single-phase solar inverters for the Net Metering Program. SREDA lists the model with a 5 kW capacity and the following standards: BDS IEC 61727:2020, BDS IEC 62116:2020, BDS IEC 62109-1:2016 and BDS IEC 62109-2:2016.
